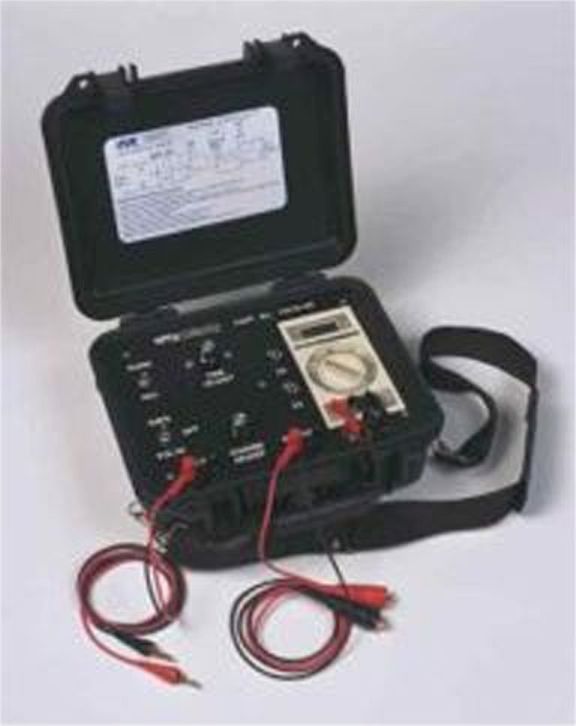

Portable Multiple
Relay Tester
|
Model 14318
|
|
|
-
Tests DC & AC Relays
-
Field proven carrying case is railroad tough,
lightweight, and water resistant.
-
Cover is removable for operational versatility.
-
Contamination proof, impact proof, and high-energy
transient protection digital multi-meter.
-
Label shows block diagram and battery replacement
instructions.
-
Rugged adjustable carry strap.
-
One set of heavy-duty battery and relay leads.
-
Circuit breakers for protection.
-
Coarse and fine controls, forward/reverse switch,
and voltage/amp switch.
-
Also includes a recommended test procedure,
Document No. 14318-99.
|
| The Ultra-Tech Model 14318 is a cut
above anything else in its class. This complete Portable Relay
Tester comes fully operational and housed in a durable, lightweight,
water resistant, and field-tested railroad tough carrying case.
Our rugged, adjustable carry strap makes transporting the unit
effortless. This model's proven track record insures that
operating characteristics of vital signal relays meet OEM specifications
while meeting Federal Regulations, under FRA Rule: 236.106 |
Test the
Ultra-Tech Way ....
| Mechanical |
Electrical |
| Size |
Input Voltage .......... 15 VDC or AC Max |
| Width
......................... 13-3/8 inches |
|
| Height
........................ 11-3/4 inches |
Output Current ........ 1.9 AMP Intermittent |
|
13-1/4 inches (over handle) |
0.8 AMP Continuous |
| Depth
......................... 6 inches (case closed) |
Polarity ..................... Normal and
Reverse |
| Weight
...................... 8.8 lbs. |
|
| Color
......................... Black |
Protection ................. Solid state over
current detector and breakers. |
| Case
Material .......... Copolymer Polypropylene |
|
|
