14570-00 BATTERY RELAY TESTER
|
FEATURING
|
|
|
-
Field proven carrying case is railroad tough,
lightweight, and water resistant.
-
Reliable operation and extended operating
temperature at or below freezing.
-
internal 12 VDC battery pack is rechargeable and
safety sealed.
-
Comes with a standard AC battery charger.
-
DC auto charger hookup fits standard vehicle
cigarette lighter outlet. (Optional)
-
Contamination proof, impact proof, and high-energy
transient protection digital multi-meter.
-
Label shows block diagram and battery replacement
instructions.
-
Rugged adjustable carry strap.
-
One set of heavy-duty battery and relay leads.
-
LED indicator for internal battery mode operation.
-
Coarse and fine controls, forward/reverse switch,
and voltage/amp switch.
-
Also includes a recommended test procedure,
Document No. 14318-99.
|

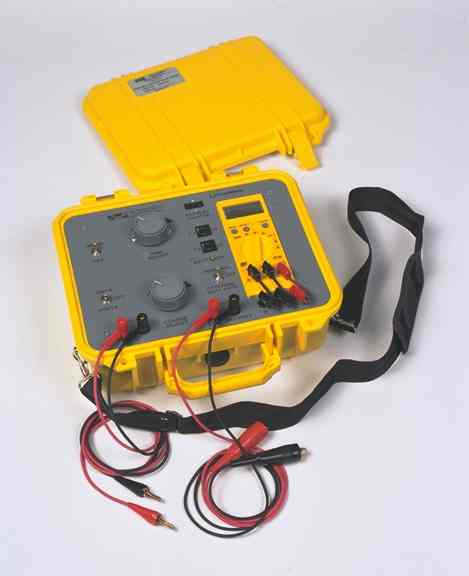

| The Ultra-Tech Model 14570 Portable
Relay Tester comes complete and fully operational. The railroad
tough carrying case is, lightweight, durable, water resistant, and field-tested.
Our rugged, adjustable carry strap makes transporting the unit
effortless. The Model 14570 is capable of operating from either an
external battery source or its internal, rechargeable battery
supply. The purpose the Model 14570 is to test and insure that
operating characteristics of vital signal relays meet OEM specifications
while meeting Federal Regulations, under FRA Rule: 236.106 |
Test the
Ultra-Tech Way ....
| Mechanical |
Electrical |
| Size |
Power |
| Width
......................... 13-3/8 inches |
External
Input .................15 VAC or DC max |
| Height
........................ 11-3/4 inches |
Internal
Battery ..............12 VDC @ 7 Ah |
|
13-1/4 inches (over handle) |
Circuit Breaker (input) ..........2 AMP |
| Depth
......................... 6 inches (case closed) |
Polarity
..................................Normal and Reverse (switch) |
| Weight
...................... 14.5 lbs. |
Battery Charger ...................115
VAC |
| Color
......................... Yellow |
12 VDC |
| Case
Material .......... Copolymer Polypropylene |
Protection
............................ Solid State over current detector &
breakers. |
|
