Relay Tester with
Timer/Counter
|
Model
15967
|
|
|
-
Tests DC & AC Relays
-
Measures relay actuation & de-actuation times
associated with Slow Release/Acting and Timing Relays.
-
Tests and display the "code Rate" &
percentages of "Duty Cycle On Time" of Coding Relays.
-
Field proven carrying case is railroad tough,
lightweight, and water resistant.
-
Contamination proof, impact proof, and high-energy
transient protection digital multi-meter.
-
Label shows block diagram and battery replacement
instructions.
-
Rugged adjustable carry strap.
-
One set of heavy-duty battery and relay leads.
-
Circuit breakers for protection.
-
Coarse and fine controls, forward/reverse switch,
and voltage/amp switch.
-
Also includes a recommended test procedure,
Document No. 14318-99.
|

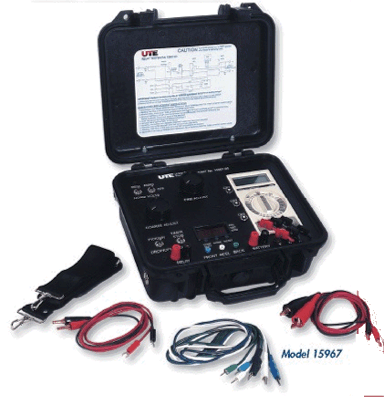

| The new Ultra-Tech Model 15967 Relay
Tester with Timer/Counter will consistently test various relays that
include: Timers, Coders, slow Release and Slow Acting. As well as
performing the standard tests, th9s new tester will display the Code
Rate and Duty Cycle percentage while you are testing Coding
Relays. This tester comes complete with test leads, battery leads,
and is integrated within a Railroad Tough, weather resistant carrying
case. is a cut
above anything else in its class. This complete Portable Relay
Tester comes fully operational and housed in a durable, lightweight,
water resistant, and field-tested railroad tough carrying case. |
Test the
Ultra-Tech Way ....
| Mechanical |
Timer/Counter |
| Size |
Operating Modes: Timer (seconds or
minutes), Code/Duty Cycle Counter |
| Width
......................... 13-3/8 inches |
|
| Height
........................ 11-3/4 inches |
Mode Select: Push button selects Seconds,
Minutes, or Counting modes |
|
13-1/4 inches (over handle) |
|
| Depth
......................... 6 inches (case closed) |
Timing Ranges: Selectable 0 - 99.9 sec., 0 -
99 minutes |
| Weight
...................... 9 lbs. |
|
| Color
......................... Black |
Code Counter Range: 0 - 450/min or 0 - 100%
Duty Cycle |
| Case
Material .......... Copolymer Polypropylene |
|
|
Signal Input: Dry Contact Closure |
| Electrical |
|
| Input Voltage .......... 15 VDC or AC
Max |
Operation (Timer): Contact closure on signal
input starts timer, open |
|
contact stops timer. In manual mode,
pressing Auto/Manual button |
| Output Current ........ 1.9 AMP
Intermittent |
once starts timer and pressing again stops
timer. |
|
0.8 AMP Continuous |
|
| Polarity .....................
Normal and Reverse |
Reset: Front panel push button switch |
|
|
| Protection .................
Solid state over current detector and breakers. |
|
|
|
|
